Bimetal Thermometers
Specifications:
1. Case Diameter: 2", 3", 4", 5", 6"
2. Case Material: SUS304 / SUS316
3. Accuracy: +/- 1%

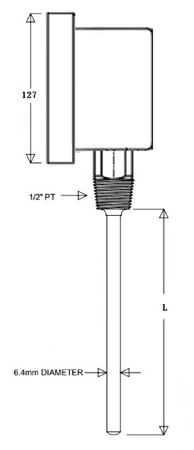

4. Stem Diameter: 6.4mm Standard (4 / 8 / 9.5mm Optional)
5. Stem Length: 2"~50" (Optional)
6. Transparent Plate: Resin or safety glass
7. Temperature Range: -50~600℃
8. Contact Type: SPST for 3" ~6"
9. Connection Size: 1/4", 3/8", 1/2"
10. Connection Type: PT, NPT
Bimetallic thermometers are contact temperature sensors found in several forms if you know where to look inside simple home heating system thermostats.
They're the coil of metal that has some electrical contacts affixed to it. They are more familiar to many people in industry and commerce as miniature pocket dial thermometers that many people use to check the temperature of fat in a vat on a small process line.
Application:
1.Water heaters, refrigerators and deep freezers.
2.Chemical, petrochemical industry
3.Power engineering
4.Machine building and general plant construction
5.Food industry
Feature:
1. All welded stainless steel construction
2. Easy external recalibration adjustment
3. Process grade resettable
4. Process grade
5. Accuracy: ±1% full range span
6. Over-range protection is 50% up to 500°F (10% above 500°F)
7. Fully gasket glass lens
8. Silicone filled models available for extreme vibration or low temperature application
