We are a technical Taiwan Floating Level Switch manufacturer, factory, supplier and exporter. Depending on stable investment, superior competence and good after-sale service, we have made us as one of the leading manufacturers and exporters in the industry. We promise quality products and competitive price and on-time delivery for you. We have been establishing long-term business with our customers. If you are interested in any model of our products, please be free to contact us.

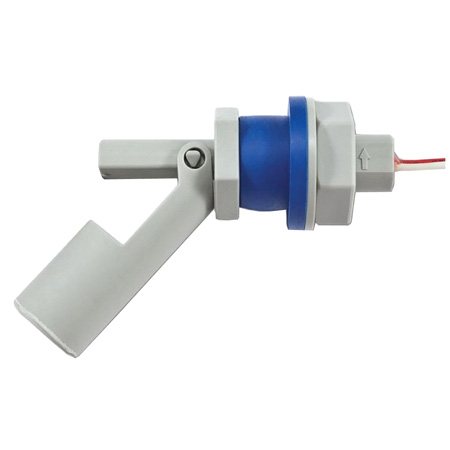

Floating Level Switch
1. Switching Power:70W
2. Switching Vlots: 150 VDC
3. Switching Current:0.5Amp
4. Max. Pressure:4 kg/cm²
5. Float S.G: 0.9 g/cm³
6. Temperature Range: -20~120°C
7. Float Size: ø17.2 x 49.3
8. Material: PVDF
9. Connection Thread: M16
Feature:
1.Compact size
2.Low cost
3.Reliability/long switch life
4.Can be used in a wide range of liquids
5.Utility design for shock resistive construction in the float
Application:
Typical applications include automatic vending machines, photocopiers, small collection tanks, miniature pumping stations, pilot plants and similar small system applications.
These miniature liquid level switches have been designed for reliable operation in small tanks and containers. Their rugged design and careful engineering make them the perfect solution for OEM and large volume applications.
Reed switches are not designed for the direct starting of inductive loads such as motors, contactors, solenoid valves, etc. They are susceptible to damage from over voltages. Do not exceed the specified switch ratings listed in the specifications charts. Contactors should be wired to miniature relays, suppressors or similar devices.
