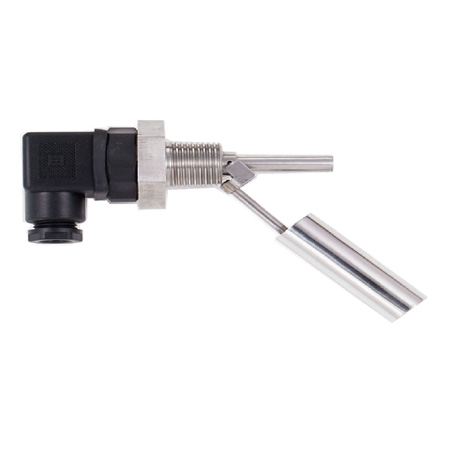

Mini Float level switch

Specifications:
1. Switching Power:70W
2. Switching Vlots: 240VAC/200VDC
3. Switching Current:0.7Amp
4. Max. Pressure:10 kg/cm²
5. Float S.G: 0.7 g/cm³
6. Temperature Range: -20~120°C
7. Material: SUS304
8. Connection Thread: 1/2” PT/ 1/2"PF (customized)

The float switches are externally mounted horizontal float switches with reduced length floats for applications where space is restricted. The float is of 316L Stainless Steel and the stem is of 304 Stainless Steel. These devices are easily mounted, using 3/4”NPT, without needing internal access to the tank/vessel into which they are being fitted. These are available with either 1 metre flying leads or with a DIN43650 connector. The switch action may be reversed by mounting the device with the float able to move upwards away from the body, instead of the more normal downwards direction.

Combing outstanding quality and value, we are exporting, supplying and trading optimum grade Mini Float Level Switch. We have sourced our offered range of level switches from authorized vendors of the market, who manufacture it in complete compliance with the international quality standards and norms. This Mini Float Level Switch.
