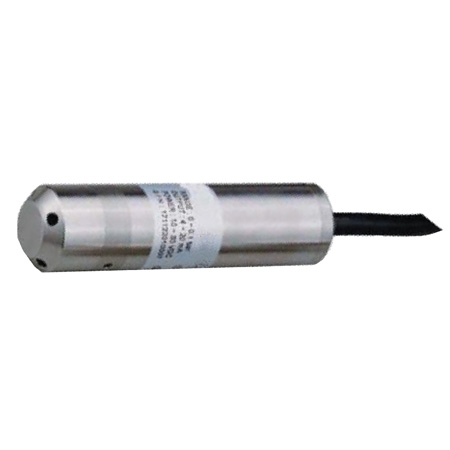

Submersible Pressure Transmitter

1. Output : 4~20mA ; 2-wire
2. Linear accuracy : ±0.5 % of F.S
3. Measuring range : 0~10 BAR
4. Response time : ≤ 5 ms
5. Media measured : liquid
6. Operation temperature : -20~+80°C
7. Power supply : DC: 10~30V
8. Current consumption : ≤ 21mA
9. Overvoltage protection :  <33VDC
10. Protection degree : IP 68
11. Electrical protection : over-voltage, polarity, short-circuit
12. Housing : SUS 316
13. Wetted part : SUS 316
14. Sensor : SUS 316L

Feature:

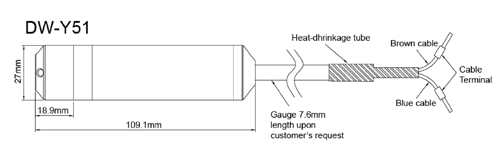

1. Housing SS316 outer, diameter 22Ø or 27Ø.
2. Compact and rugged design and easy to install.
3. With reasonable price, high accuracy and good stability in a long-run.
4. Cable material: PVC or PTFE.

Submersible Pressure Transmitters provide superior liquid level and depth measurement performance at affordable prices. Using the same pressure-sensing technologies and advanced manufacturing techniques as the rest of our products. Submersible pressure transducer can achieve accuracies of ±0.5 % of F.S, all the while providing our typical high shock resistance, excellent long-term sensor stability and CE compliant noise immunity. In addition to these features, the DW-Y51/52 Series submersible pressure transducer helps prevent common installation problems such as reverse-polarity wiring, overvoltage and short circuiting. Our 100% inspection and testing program ensures trouble-free installation. The DW-Y51/52 Series submersible pressure transducer features a 316 stainless steel body and submersible cable connection.

measures water level, depth to water, or pressure by means of an integrated controller and ceramic pressure-measuring cell. High accuracy measurements are possible because of the ceramic pressure-measuring cell, which is vented for atmospheric pressure and temperature compensation. Design features such as multiple communication outputs, stainless steel housing, and a rugged cable make this sensor ideal for monitoring water level in a variety of applications.
