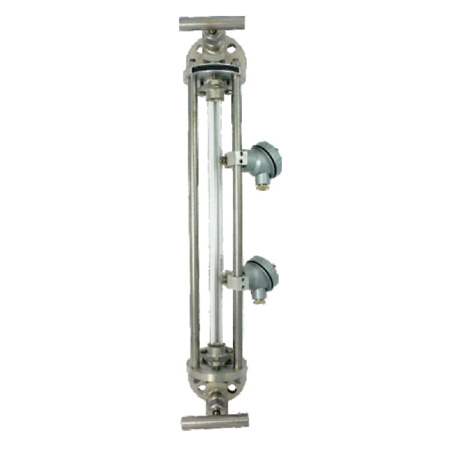

Tubular Level Gauge

Specifications:
1. Body Material: SUS304, SUS316
2. Connection Size: 1/2" , 3/4", 1"
3. Connection Type: JIS 10K , ANSI 150LB
4. Pressure Range: 4~7 kg/cm²
5. Temperature Range: 100°C
6. Tube: Class, P.V.C
7. Seal: Neoprene, Vlton, Teflon

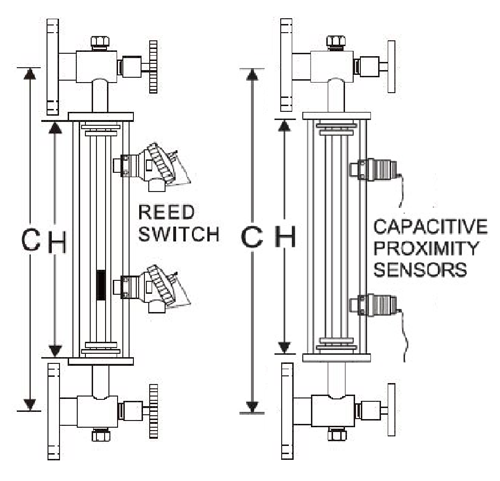

8. Alarm Switch: Hi, Low, Hi& Low
9. Ball Check: Yes or No

Tubular level gauges are simple in construction and reliable in operation for direct visual verification of level in vented or lightly pressurized tanks. The measuring tube is protected by tie rod. The level gauge is supplied with auto shutoff ball check valve to prevent leakage of process fluid in event of breakage of glass tube.

Tubular Level Gauges are designed to view liquid levels using clear or red line Bo tubing. All valves use a stuffing box configuration to seal the glass tube, and have a ball check shutoff to prevent loss of vessel contents in case of glass failure. Operating pressure and temperatures are subject to the limitations of the tubular gauge glass and washer composition; consult with Pressure Products for gauge glass ratings.

Features:
1.Glass removal
2.Possible replacement without dismantling of the Gauge assembly
3.Cleaning of the glass gauge without removal
4.Constructed in various types of material for different application
5.Reliable for direct reading of clean Liquids levels at low/High Pressure & Temperature Conditions
