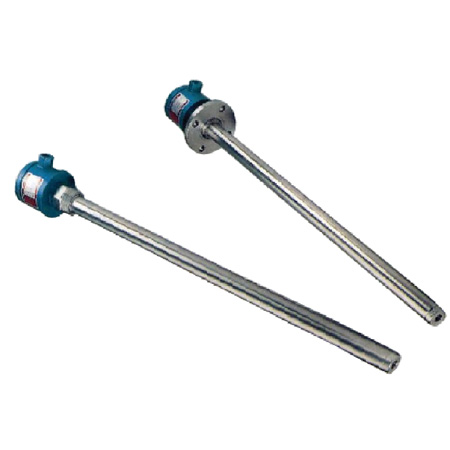

Continuous Level Transmitter
Specifications:
1. Probe Material: SUS304 / SUS316
2. Output Signal: 4 -20mA
3. Measuring Range: 0~1M, 0~2M, 0~3M, 0~6M, 0~10M (Customized)
4. Probe Diameter: 1"
5. Connection: Flange 1.5" 5k JIS, Thread 1.5" PT
6. Linearity: 0.35% FS Max.
7. Operation Temperature: 0 to 80 °C
8. Control Output: 2 Set SPDT 250V/2A

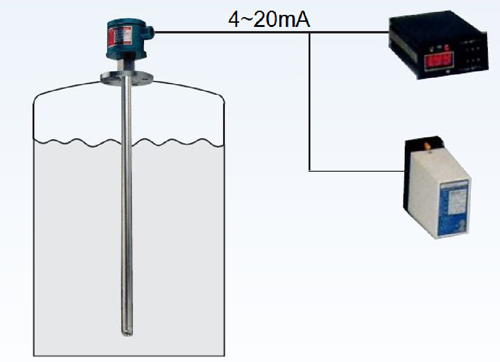

In the connection head a signal transmitter is mounted and converts the signal into a standard 4 - 20mA. Every sensing element is protected by a plastic package, safety in use and transport. High performance and reliability of electric circuit modular designed. Lower installation costs, less maintenance, reduced personnel training, and decreased plant shock down time. High accuracy and linearity
The hydrostatic pressure sensor is used for the following measuring tasks:
Hydrostatic pressure measurement in liquids and paste-like media in all areas of process engineering, process measuring technology, pharmaceuticals and the food industry. Level, volume or mass measurements in liquids.
