Level Transmitter

Specifications:

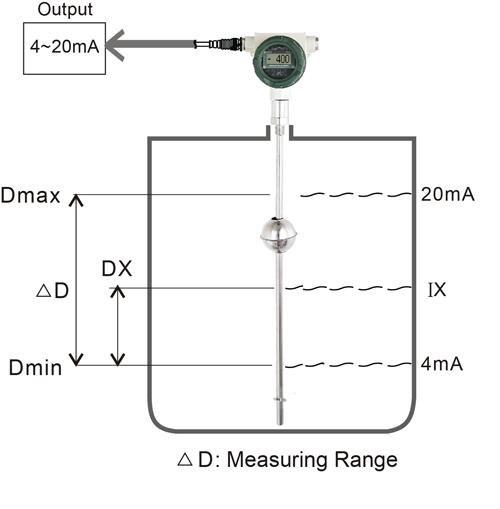

1. Measuring Range : 500~3000mm
2. Power Supply : Loop power +24VDC
3. Output : 4 ~ 20mA (2 Wires )
4. Operation Temp. : -20°C ~100°C
5. Operation Pressure : 20 bar
6. Non-Linearity : ±0.05%FS
7. Repeatability : ±0.002%FS
8. Accuracy : +/- 0.5mm
9. Temp. Coefficient : +/- 100 ppm/°C
10. Power Consumption : 50mA
11. Stem Material : SUS304
12. Enclosure : IP65

Feature:
1. Measuring accuracy up to +/- 0.5mm
2. Temperature-compensated
3. 2-wire terminal (4-20mA)
4. Measuring range along the complete probe length

Industries
1.Chemical and Petrochemical
2.Oil and Gas
3.Power Plants
4.Water and Waste Treatment
5.Pulp and Paper Processing
6.Pharmaceutical Processing
7.Food and Beverage Processing

High Accuracy Transmitter is applied for liquid and oil level interface for continuous measurement. A wide application area, including: oil, chemical raw materials, industrial processes, biochemical, pharmaceutical, food and beverage, underground gas station inventory, metering monitoring, control processes, the monitoring of water and wastewater treatment, and so on.
The high-precision and robust level sensor is designed to provide continuous gauging of liquid media levels in tanks. The measuring principle used by the sensor exploits the physical effect of magnetostriction and is largely unaffected by temperature. Magnetostriction is particularly ideal where level measurements are required to be extremely accurate, e.g. in the chemical industry. The level sensor outputs measuring signals in the range 4 to 20 mA. Available in lengths of 500 ~ 3000 mm, it is compatible with a variety of tank dimensions.
