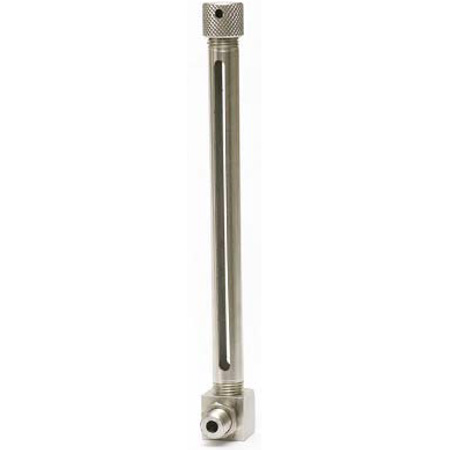

Tubular Type Level Gauge - DLG
Model: DLG
Tubular Type Level Gauge



Specifications:
1. Body Material: 304, 316, Copper
2. Connection Type: PT, PF
3. Connection Size: 1/4", 3/8"
4. Indicating Tube: Class
5. Seal Material : Viton (100°C) , Neoprene (70 °C)
6. Max. Temperature : 100°C
7. Max. Pressure:4 kg/cm²

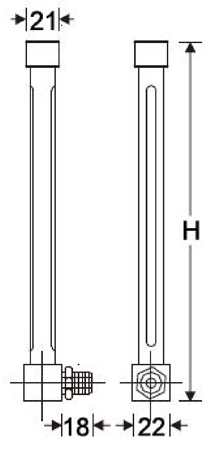

8. Standard Length: 150mm, 200mm, 300mm, 400mm, Option available.

Application: For oil Tank, mini size tank.
Simple low cost and reliable for direct reading of clean liquid levels at low pressure and temperature conditions. Gauge is fitted between two end blocks through gland packings. The gauge is mounted parallel to tank so as to form a close loop causing tank liquid to seek its level in the gauge. It is an economical, rugged, compact and reliable gauge for visual indication of oil levels in small tanks.
