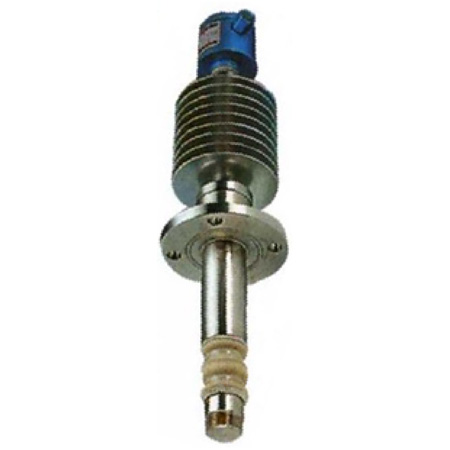

Capacitance Type Level Switch

Specifications:
1. Sensor Material: SUS304 /SUS316
2. Sensor Mounting : Flange 2.5 " 10K JIS)
3. Insulator Material : Ceramics
4. Sensor Length : 270mm
5. Max. Pressure: 5 kg/cm²
6. Cable Conduit : 1/2" PF
7. Temperature Range: 800°C
8. Power Supply : AC110/220V, 50/60 Hz
9. Power Consumption : 4VA
10. Control Output: UF : SPDT 250V/2A / NSA : SPDT 250V/5A

An insulated metal probe mounted in a metal container forms a capacitor together with the metal wall whose capacitance continually increases as the medium level increases. Hence, for capacitive measurements a medium with a constant permittivity is required.
The simple and robust construction allows level measurement of liquids, granular solids, conductive and non-conductive media.

Application:
1.Petrochemical Plants
2.Water Treatment Plants
3.Food Industry
4.All kind of solid and liquid with dielectric constant

The level controller has high sensitivity can be used to detect and control level of all kinds of materials including: All kinds of animal-oil, plant-oil and mineral-oil. All kinds of chemicals and foods in form of liquid, powder, granule, lump.
