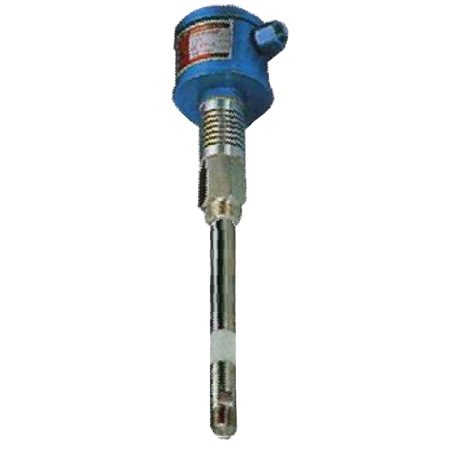

Capacitance Level Switches

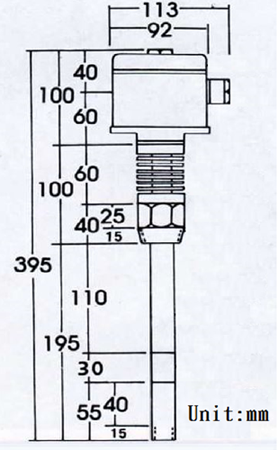

Specifications:
1. Sensor Material : SUS304 /SUS316
2. Sensor Mounting : N (Thread 1" PT) / F (Flange 1" 10K JIS)
3. Sensor Diameter : 22mm
4. Sensor Length : 195mm
5. Max. Pressure:5 kg/cm²
6. Cable Conduit : 1/2" PF
7. Temperature Range: -80~200°C
8. Power Supply : AC110/220V, 50/60 Hz
9. Power Consumption : 4VA
10. Control Output: UF : SPDT 250V/2A / NSA : SPDT 250V/5A

Capacitance Level Switches are designed to signal, monitor or detect the level of a wide variety of solids and liquids, including conductive and non-conductive with adjustable sensitivity. These units are primarily used in applications with high temperature or high pressure. Built with high mechanical resistance (316 SS solid rods and multiple options for process connection size and types), UF-N / NSA-F can be applied in various products such as cement, sand, coal, grains, etc.
For level detection of corrosive products, is also a great alternative because its rod can be completely coated with PTFE.

Feature:
1. Easy maintenance with robust construction.
2. Probe electrode, wire-extension type and high temperature type available.
3. Low cost
4. Low power consumption
5. Solid rod or fliexible sensing probes
6. Optional high temperature barrier with probes to 400ºC working

Applications:
1.Waste treatment plants
2.Refineries
3.Food and beverage industry
4.Fire protection systems
5.Water storage tanks
6.Chemical holding tanks

Level Sensor, used for a variety of liquids or solids (powder, granular, aggregate, etc) in a storage tank/vessel. Fuel levels, Water levels for process, waste, treatment, raw materials (alcohols, oils, chemicals). Plastics or solid powders for raw materials.
