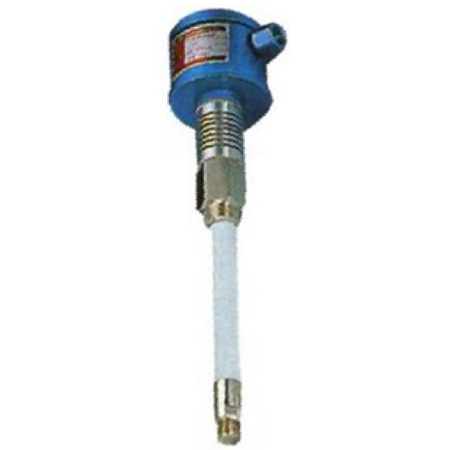

Capacitive Level Switch

Specifications:
1. Sensor Material : SUS304 /SUS316
2. Sensor Mounting : P (Thread 1" PT) / PF (Flange 1" 10K JIS)
3. Sensor Diameter : 22mm
4. Sensor Length : 100mm, 200mm, 300mm
5. Max. Pressure: 10 kg/cm²
6. Cable Conduit : 1/2" PF
7. Temperature Range: -80~200°C
8. Power Supply : AC110/220V, 50/60 Hz
9. Power Consumption : 4VA
10. Control Output: UF : SPDT 250V/2A / NSA : SPDT 250V/5A

Capacitance Level Switch is such a level switch that detects an object by seeing capacitive changes occurring between electrode and metal-tank wall or grounded electrode. As the object contacts the electrode, thus increasing capacitance generated between the electrode and metal-tank wall or grounded electrode, it detects the capacitive changes to convert its output contact. When there is no object, the output contact returns to the initial condition.

Applications:
1.Fine Powders
2.Powders
3.Granules
4. Lump
5.Liquids
6.Liquid Interface
7.Foam

Level detection in bulk solids and liquids. With both cable and rod versions, suitable instruments are available for all applications. Level detection of corrosive liquids or adhesive products are no problem. The mounting of the instruments is easy and the rugged construction is the basis for an interference and maintenance free operation.
