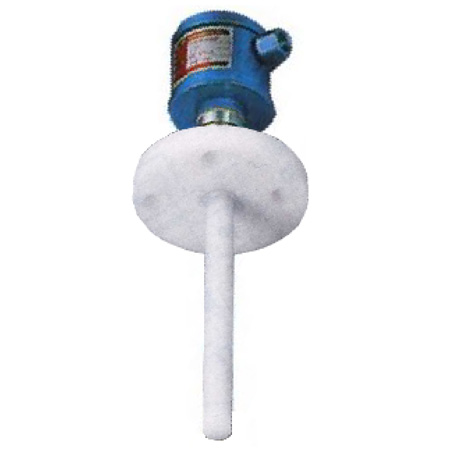

Conductivity Level Switch

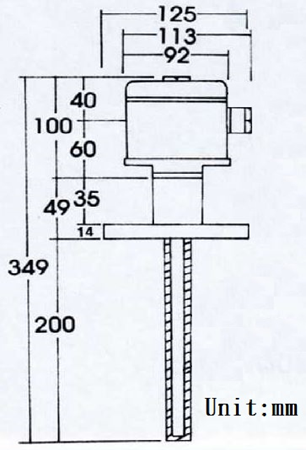

Specifications:
1. Sensor Material : TEFLON coating
2. Sensor Mounting : P (Thread 1" PT) / PF (Flange 1" 10K JIS)
3. Sensor Diameter : 22mm
4. Sensor Length : 200mm
5. Max. Pressure: 5 kg/cm²
6. Cable Conduit : 1/2" PF
7. Temperature Range: -80~200°C
8. Power Supply : AC110/220V, 50/60 Hz
9. Power Consumption : 4VA
10. Control Output: UF : SPDT 250V/2A / NSA : SPDT 250V/5A

Capacitance Level Switch detects an existence or no existence of object in a vessel like silos or tanks, depending on a capacitance principle. The composition of the sensor probe is quite simple and rigid, which is made by stainless steel and some insulators. Sensitivity is high enough to detect the insulating powder, grain and even foam. Capacitance Level Switch is the integrated reliable level switch with thorough functionality.

Application:
Capacitance level switch used as a full, empty and demand alarm in containers, hoppers, silos containing bulks and powders of various types.
Typical applications: water, waste water, cereals, beans, edible oil process, animal feed, rice plants, soya plants, dye powder, chalk, gypsum, fly-ash, cement, sand, plastic granules, spices, milk powder.
