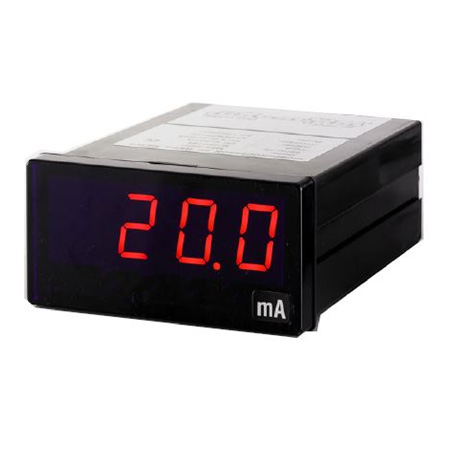

Digital Meter

Specifications:

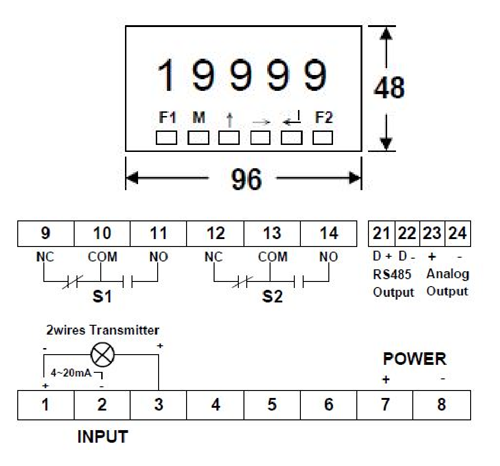

1. Analog Input: 2 Wire DC 4~20mA, EXT:DC24.
2. Multiple Display Unit : L 、 cm 、 mA 、 % 、 M 、 Ω.
3. Analog Output: 0~5VDC,0~10VDC, 4~20mA.
4. Response Time : ≦1Sec.
5. Zero Adjustable : Inside. With Zero offset.
6. Output Load : Current Mode : ≦350Ω Max,DC Voltage Mode : 10mA Max
7. Digital Output : Isolated RS-485 Modbus-RTU,9600,19200,38400 Baud Rate Selectable.
8. Relay contact capacity: SPDT AC 120V 5A, 250V 3A, DC 24V 3A.
9. Operation Power : AC 110/220V ± 15% 50/60Hz. DC 24V; 48V ±15%.
10. Operating Condition: －10℃ ～ ＋55℃ 20 ～ 95% RH Non Condensed.
11. DC24~28V(Without Load)
12. Accuracy : ± 0.05%Fs +2Counts at 23℃ ±3℃
13. Display Range: Super Red LED 4-1/2;0~19999 Counts, Display Range Programmer.

Digital panel meter features installation depth of 135 mm and has single 4-20 mA current input that also powers device, allowing it to be installed in line with current sensor. Results are displayed on 5-digit, red LED display with 13 mm high digits. Offering peak value detection, unit can display maximum value of sensor output over given time period. It is available with optional IR remote control unit for configuration and programming of display.

The ind icator has a single 4-20mA current input, which simultaneously powers the device. The indicator can therefore be installed in line with a current sensor and will display the sensor output. Measurement input is equipped with safety circuits, protecting the unit's internal electronics from overload.
