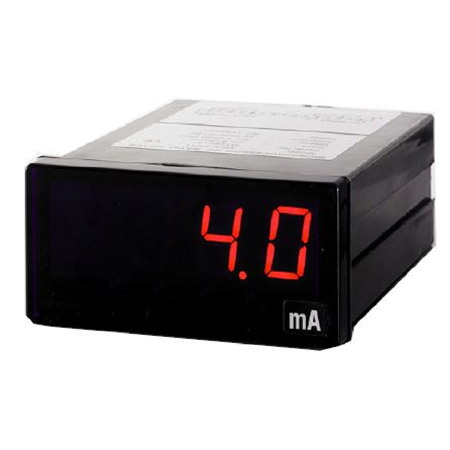

LED Digital Panel Meter
Specifications:

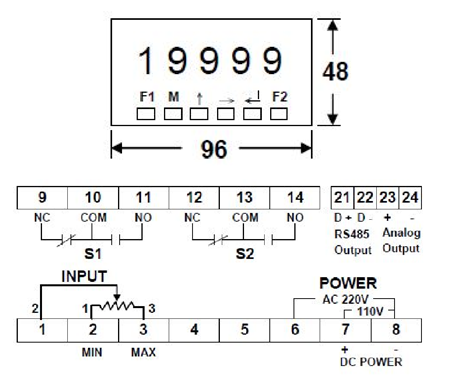

1. Analog Input: 3 Wire, 200Ω~30KΩ
2. Multiple Display Unit : L 、 cm 、 mA 、 % 、 M 、 Ω.
3. Analog Output: 0~5VDC, 0~10VDC, 4~20mA.
4. Response Time : ≦1Sec.
5. Zero Adjustable : Inside. With Zero offset.
6. Output Load : Current Mode : ≦350Ω Max,DC Voltage Mode : 10mA Max
7. Digital Output : Isolated RS-485 Modbus-RTU,9600,19200,38400 Baud Rate Selectable.
8. Relay contact capacity: SPDT AC 120V 5A, 250V 3A, DC 24V 3A.
9. Operation Power : AC 110/220V ± 15% 50/60Hz. DC 24V; 48V ±15%.
10. Operating Condition: -10℃ ~ +55℃ 20 ~ 95% RH Non Condensed.
11. Accuracy : ± 0.1%Fs +1Counts A.V.G. at 23℃ ±3℃.
12. Display Range: Super Red LED 4-1/2; 0~19999 Counts, Display Range Programmer.
Digital panel meters are used to display an input signal, and measure current, voltage, and frequency. They are equipped with bright LED displays for display only or set point control options. DW-MP is a digital meter combined with analog or digital output and 4 Hi-Lo setting relay is a trend of modern multi-function design concept. The traditional analog output has 4~20mA or 1~5V etc. For more field useful purpose, RS-485 digital output is a necessary equipped. A digital meter relay consisting of a digital panel meter with a comparison function using digital switches has been developed. Digital meters combined with unique display/switch relay and high isolated transducer together. Thereby enabling not only the reading of normal values, but also the comparison of large, medium and small values.
