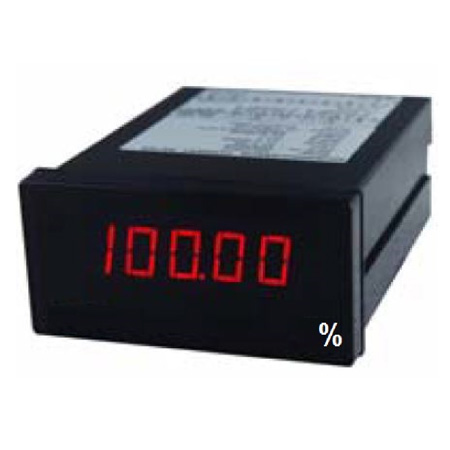

LED Panel Meter
Specifications:
1. Analog Input: DC 0~20mA, DC 4~20mA, DC 0~5V, DC 0~10V
2. Multiple Display Unit : %
3. Analog Output: DC 0~5V ,DC 0~10V, DC 4~20mA, DC 0~20mA
4. Response Time : ≦1Sec.
5. Zero Adjustable: Inside. With Zero offset.
6. Output Load : Current Mode : ≦350Ω Max,DC Voltage Mode : 10mA Max
7. Digital Output: Isolated RS-485 Modbus-RTU,9600,19200,38400 Baud Rate Selectable.
8. Relay contact capacity: SPDT AC 120V 5A, 250V 3A, DC 24V 3A.
9. Operation Power: AC 110/220V ± 15% 50/60Hz. DC 24V; 48V ±15%.
10. Operating Condition: -10℃ ~ +55℃ 20 ~ 95% RH Non Condensed.
11. DC24~28V(Without Load)
12. Accuracy : ± 0.05%Fs +2Counts at 23℃ ±3℃
13. Display Range: Super Red LED 4-1/2;0~19999 Counts, Display Range Programmer.
Digital Panel Meter can provide a number of digital panel meters to meet a wide range of applications through reliable design and reality control based on long experience with digital techniques. This is support by extensive and rigorous past production testing that is part of our quality-assurance control system using standards that are directly traceable to national standards. This quality assurance system is backed by an equally extensive and experienced after sales service.
For power system is an AC conversion to DC analog or RS-485 digital measure signal, application for Voltage, Current, Watt, Var, Watt-hour, Var-hour, Power Factor, and Frequency. For industrial process is a DC signal conversion to analog or digital signal such as DC-to-DC, temperature, load cell, speed, rotary, level etc. These digital meters have wide range applications and come in various types suitable to many application specifications, and independent isolating output. Digital Panel Meter has designed a single input but combined with a digital display meter/transducer output and setting alarm function into one case, also provided high isolated ability for fault protection different from digital multi-meters in that they are used especially for single function, single range measurement. A wide range of equipment and analog to digital conversion in highly accurate digital measurement.
