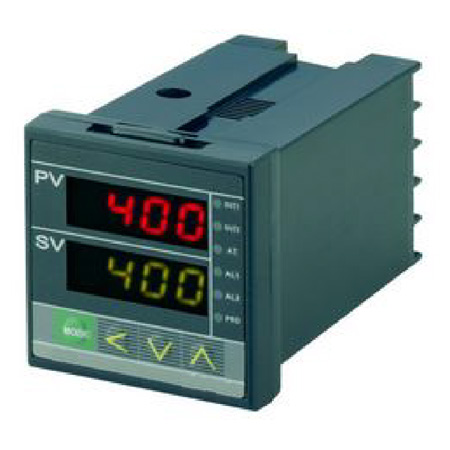

Digital PID Controller

Specifications:
1. Type of Input: TC(K,J,R,S,B,E,N,T,W,PLII,U,L)
                            RTD(PT100,JPT100,JPT50)
                            Linear(0~5V, 0-10V, 4-20 mA)
2. Input sampling Time: 250ms
3. Input Resolution: 16bit(Each)
4. Relay Output : Contact,SPDT,3A/240VAC
5. Voltage Output: Voltage Pulse,20VDC/20Ma
6. Linear Output :4~20Ma,0~5V,0~10V,1-5V,2-10V
7. Alarm Channel: Channels (Optional)點
8. Alarm Mode: 17 alarm Modes Available
9. Rated Power Supply Voltage & Frequency: A85~265V,50/60Hz
10. Power Consumption: 4VA

PID Microprocessor Controller series intelligent controller is mainly used for temperature control across verity of industries; from food process, plastics, packaging, oven mechanic to chemical processing, power plants and refinery. This controller reveals both classic and modern control theories combining intelligent PID, auto-tuning optimization.

Economic PID Microprocessor controller for digital indication of temperature, pressure, flow, level, humidity and other parameters of the monitoring and alarm. There are many to choose form, completely replace traditional temperature controller.

1. Universal Input
2. Configurable output combination
3. Field configurable, band, deviation, sensor break & loop break alarms
4. Single / Dual acting PID controllers with 5 control modes
5. Auto - tuning PID with provision for soft- start
7. 6 segment ramp & soak profile with power failure resumption modes
7. Rapid set point change feature
8. RS 485 communication
9. IP 65 protection
