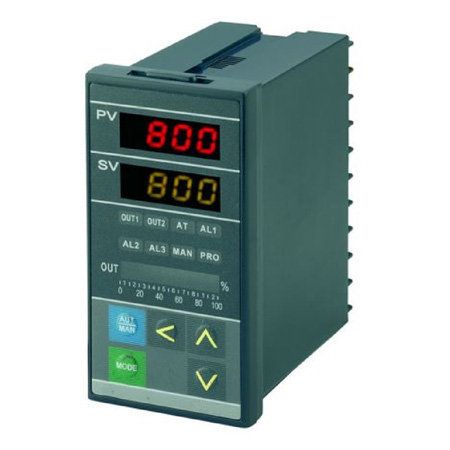

PID Temperature Control

Specifications:
1. Type of Input: TC(K,J,R,S,B,E,N,T,W,PLII,U,L)
                            RTD(PT100,JPT100,JPT50)
                            Linear(0~5V, 0-10V, 4-20 mA)
2. Input sampling Time: 250ms
3. Input Resolution: 16bit(Each)
4. Relay Output : Contact,SPDT,3A/240VAC
5. Voltage Output: Voltage Pulse,20VDC/20Ma
6. Linear Output :4~20Ma,0~5V,0~10V,1-5V,2-10V
7. Alarm Channel: Channels (Optional)點
8. Alarm Mode: 17 alarm Modes Available
9. Rated Power Supply Voltage & Frequency: A85~265V,50/60Hz
10. Power Consumption: 4VA

PID Microprocessor Controller is an industry leading panel mount PID controller that allows for optimal performance utilizing simple control and menu functionality without complex features. The PID controller is ideally suited for basic applications and usage levels.
It includes one universal input and the option for up to two outputs and is available in 1/32, 1/16, 1/8 or 1/4 DIN panel mount packages. The PID controller can be ordered as a PID process controller or a dedicated limit temperature controller.

Economic PID Microprocessor controller for digital indication of temperature, pressure, flow, level, humidity and other parameters of the monitoring and alarm. There are many to choose form, completely replace traditional temperature controller.

If you are looking for a simple and easy-to-use basic PID controller or an over and under limit controller, the CK Series PID controller will be the ideal controller to use.
