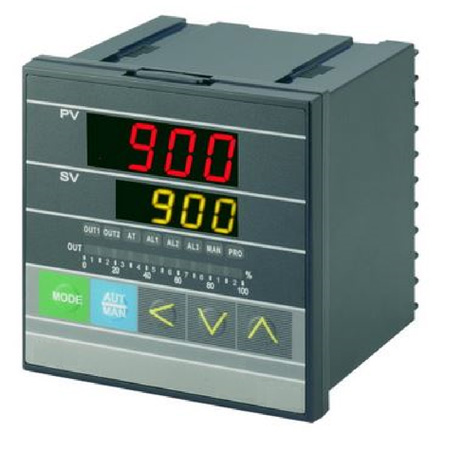

Digital PID Temperature Controller

Specifications:
1. Type of Input: TC(K,J,R,S,B,E,N,T,W,PLII,U,L)
                            RTD(PT100,JPT100,JPT50)
                            Linear(0~5V, 0-10V, 4-20 mA)
2. Input sampling Time: 250ms
3. Input Resolution: 16bit(Each)
4. Relay Output : Contact,SPDT,3A/240VAC
5. Voltage Output: Voltage Pulse,20VDC/20Ma
6. Linear Output :4~20Ma,0~5V,0~10V,1-5V,2-10V
7. Alarm Channel: Channels (Optional)點
8. Alarm Mode: 17 alarm Modes Available
9. Rated Power Supply Voltage & Frequency: A85~265V,50/60Hz
10. Power Consumption: 4VA

PID Temperature Controller used the advanced SMT technology, Modular Structure, to be designed high quality and performance, universal use, to be aimed to measure and control accurately the processes in various industry applications for temperature, humidity, pressure, level, weight, flow etc.

Feature:
1.easy-to-use
2.PID function selectable
3. Relay or SSR ouput,selectable via DIP switch
4. Accepts thermocouple and platinum RTD inputs
5. Heating or cooling control selectable
6. Panel lock protection function
7. Sensor malfunction detection function

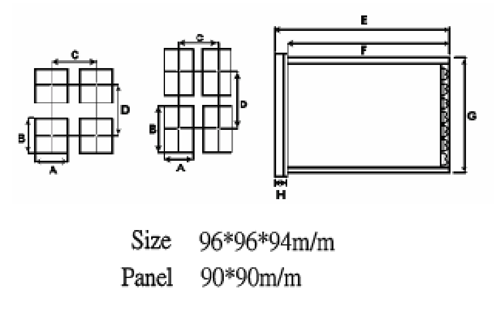

8. Available in 5 sizes:48x48mm (1/16DIN),48x96mm(1/16DIN),
    72x72,96x48mm,96x96mm (1/4DIN)

Economic PID Microprocessor controller for digital indication of temperature, pressure, flow, level, humidity and other parameters of the monitoring and alarm. There are many to choose form, completely replace traditional temperature controller.
