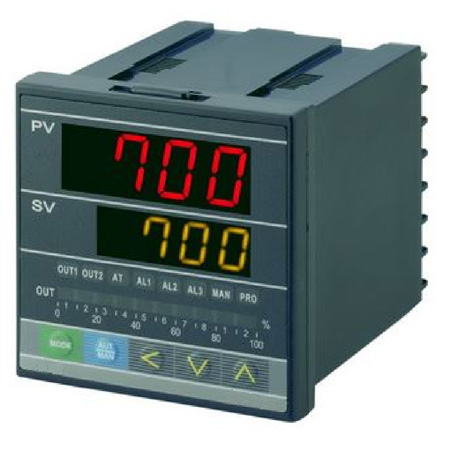

PID Temperature Controllers

Specifications:
1. Type of Input: TC(K,J,R,S,B,E,N,T,W,PLII,U,L)
                            RTD(PT100,JPT100,JPT50)
                            Linear(0~5V, 0-10V, 4-20 mA)
2. Input sampling Time: 250ms
3. Input Resolution: 16bit(Each)
4. Relay Output : Contact,SPDT,3A/240VAC
5. Voltage Output: Voltage Pulse,20VDC/20Ma
6. Linear Output :4~20Ma,0~5V,0~10V,1-5V,2-10V
7. Alarm Channel: Channels (Optional)點
8. Alarm Mode: 17 alarm Modes Available
9. Rated Power Supply Voltage & Frequency: A85~265V,50/60Hz
10. Power Consumption: 4VA

This popular type of controls provides a proportional temperature control combined with integral and derivative temperature control. Proportioning the heat means less power to the heater is supplied if the heat is closer to the set point. This is achieved by the derivative and integral operating modes. The controllers come with set parameters which may be adjusted to your application.

Feature:
1. Relay output.
2. Equipped with a built-in relay (5A/220V/110v).
3. Output = Relay (heating side).
4. Alarm output built-in relay
5. It has a universal type input.

Applicable industries:
1. Machinery
2. Chemicals
3. Ceramics
4. Light manufacture
5. Metallurgy
6. Petrochemicals
7. Kiln, Oven, Furnace and etc.
