We are a technical Taiwan Flow Controller manufacturer, factory, supplier and exporter. Depending on stable investment, superior competence and good after-sale service, we have made us as one of the leading manufacturers and exporters in the industry. We promise quality products and competitive price and on-time delivery for you. We have been establishing long-term business with our customers. If you are interested in any model of our products, please be free to contact us.

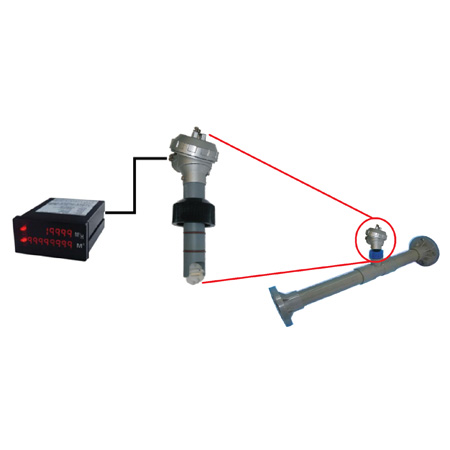

Flow Controller
Specifications:
1. Accuracy is 1% of F.S. at 25℃
2. Pulse rate(K factor) is settable
3. Flow Velocity: 0.3~0.6 m / s Max.
4. Body Material: CPVC, PTFE, SUS316L
5. Max. Pressure: PVC/CPVC 10 kg/cm², SUS/CS 18 kg/cm²
6. Temperature Range: CPVC 0~85°C, PTFE / SUS316 100°C
7. Response Time: Real time
8. Power Supply: 5 VDC or 12~30 VDC
9. Output: NPN
10. Operation temp.: -10 ~ 65℃
The simple and reliable paddle wheel flow sensor is designed for use with every kind of solid-free liquids. The sensor can measure flow from 0.15m/s producing a frequency output signal highly repeatable. A rugged construction and proven technology make sure exceptional performance with little or no maintenance required.
Hi accuracy and reliability, easy installation and maintenance. Free flow direction.
Application: Pure water production, filtration system, chemical production, cooling system, pump protection, boiler feed water monitoring, heat exchangers
Feature:
1. CPVC, PVDF or stainless steel sensor body.
2. Easy insertion system.
3. Different version for remote and compact installations.
4. High chemical resistance.
5. 4~20mA output
6. Alarm relay output
1. Accuracy is 1% of F.S. at 25℃
2. Pulse rate(K factor) is settable
3. Flow Velocity: 0.3~0.6 m / s Max.
4. Body Material: CPVC, PTFE, SUS316L
5. Max. Pressure: PVC/CPVC 10 kg/cm², SUS/CS 18 kg/cm²
6. Temperature Range: CPVC 0~85°C, PTFE / SUS316 100°C
7. Response Time: Real time
8. Power Supply: 5 VDC or 12~30 VDC
9. Output: NPN
10. Operation temp.: -10 ~ 65℃
The simple and reliable paddle wheel flow sensor is designed for use with every kind of solid-free liquids. The sensor can measure flow from 0.15m/s producing a frequency output signal highly repeatable. A rugged construction and proven technology make sure exceptional performance with little or no maintenance required.
Hi accuracy and reliability, easy installation and maintenance. Free flow direction.
Application: Pure water production, filtration system, chemical production, cooling system, pump protection, boiler feed water monitoring, heat exchangers
Feature:
1. CPVC, PVDF or stainless steel sensor body.
2. Easy insertion system.
3. Different version for remote and compact installations.
4. High chemical resistance.
5. 4~20mA output
6. Alarm relay output
