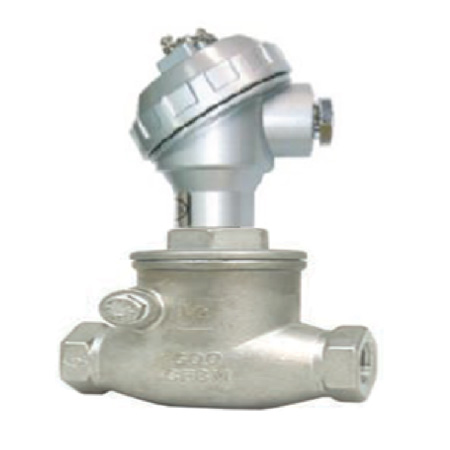

Flow Switches

Specifications:
1. Hosing: Aluminum alloy

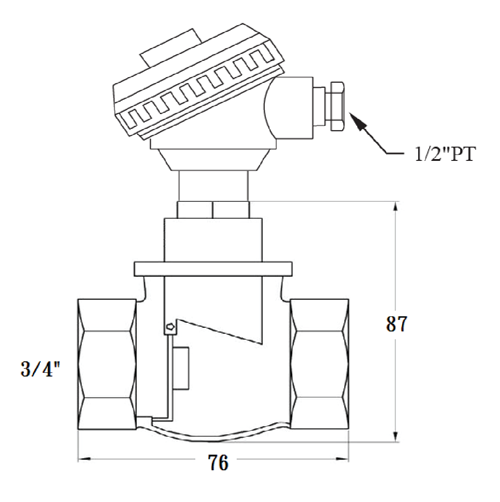

2. Connection Thread: 3/4" , 1" , 1 1/2", 2" PT
3. Switching Current: 250VAC/DC 60W/VA
4. Contact Output: NO
5. Temperature Range: -10~80°C
6. Body Material: Stainless

A flow meter is a device used to indicate and control the flow speed. When the float ball of the level switch rises or falls with the liquid. The magnetic force of magnet which inside of the float ball will cause the reed switch to turn on. When the float ball move away from the reed switch, the reed switch will turn off.

Application:
Water heater, water dispenser, air-condition, humidifier, dehumidifier, fluid control, a pump, an indicator, an alarm, or other device.

Protect Bearings or Gears: oil separators, fuel systems, pumps, compressors, presses. Electronics or Machinery: heat exchangers, semiconductor manufacturing equipment, induction furnaces, radio transmitters. Process Systems: water filtration and reverse osmosis, chlorinators, de-icers, sterilizers, evaporators.
