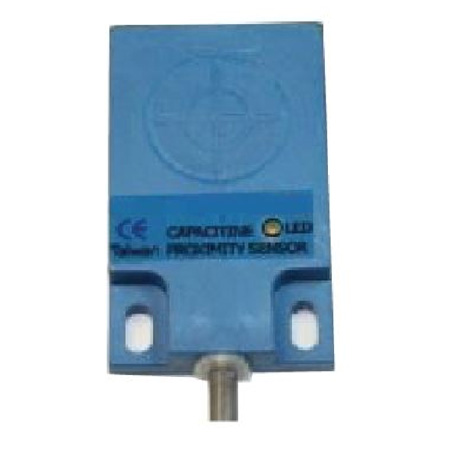

Capacitive Proximity Sensor

Specifications:
1. Sensing distance: 2 ~ 6mm or 2 ~ 10mm
2. Operating voltage: DC 10~30V、ripple ≦ 10%
3. Switching frequency: 50Hz 25Hz
4. Operating current: 100mA
5. Output indicator : Yellow , LED
6. Short circuit protection: pulsing
7. Protection Class:  IEC IP6 7
8. Operation Temp.: -20 ~ 70℃
9. Housing material : PBT
10. Connect ion cable: 2M
11. Output : PNP or NPN

Feature:
1.Rectangular housing
2.Operating distance up to 25 mm
3.High electromagnetic immunity
4.IP 67 enclosure rating
5.Complementary output function
6.LED status indicator
7.Short-circuit reverse polarity and power-up pulse suppression protection
8.PNP or NPN output versions are available

Rectangle Capacitive Proximity Sensor Durable housing withstands harsh industrial applications, reducing maintenance costs and downtime. Quick and easy adjustment of the switching point saves installation and setup time. Application flexibility - solves applications where other sensing technologies cannot provide a solution. High shock and vibration resistance increases sensor life and reduces maintenance costs. Non-contact level measurement, even through container or tank walls, which eliminates drilling holes and thus reduces installation time. Be able to detect different substances like metal, plastic, liquid and etc. Be widely used in non-metal processing industries like Packaging, Plastic, Paper Products and etc.
