We are a technical Taiwan Capacitive Proximity Switch manufacturer, factory, supplier and exporter. Depending on stable investment, superior competence and good after-sale service, we have made us as one of the leading manufacturers and exporters in the industry. We promise quality products and competitive price and on-time delivery for you. We have been establishing long-term business with our customers. If you are interested in any model of our products, please be free to contact us.

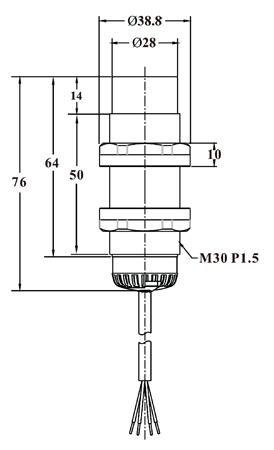

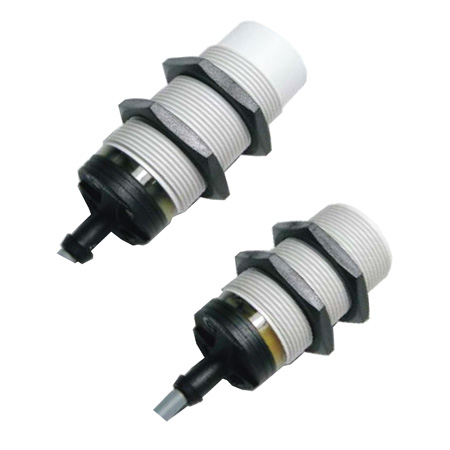

Capacitive Proximity Switch - DIM-3016 / 3025
Model: DIM-3016 / 3025
Capacitive Proximity Switch



Specifications:
1. Sensing distance 25mm
2. Installation: Unshielded
3. Switching Output: NPN NO&NC / SCR NO&NC
4. Operating voltage: DC 10~40V、ripple≦10% / AC 20~250V 50/60 Hz
5. Response frequency: 15Hz / 10Hz
6. Load current: 0 ~ 200mA / 10 ~ 500mA
7. Sensitivity adjustment: Sensitivity adjuster
8. Operation indicator: Red LED
9. Circuits protection: Reversed polarity & Short circuit protection
10. Housing material: PBT
11. Lead-wired: 2M Cable

Our capability and industrial know how has enabled us to manufacture and supply Capacitive Proximity Sensors. These products find application in ground proximity warning system for aviation safety, anti-aircraft warfare, roller coasters, conveyor systems and mobile devices. Known for their precise detection of nearby objects without physical contact, these products have high reliability and accurate functioning. Our clients appreciate these products for their longer service life and maintenance free nature. Capacitive Proximity Sensors are packed in damage proof packaging material to ensure their safe and secure transit.

1. Able to detect iron, metal, plastic, water, stone, wood etc
2. Easy to control of level and position
3. Easy to adjust of the sensing distance with built-in sensitivity adjuster
4. Built-in protection circuit of reverse power polarity, surge, over current
5. Output: NPN / PNP , NO / NC
6. Power supply: 100-240VAC (AC 2-wire), 12-24VDC(DC 3-wire)
7. Noise-resistant Models added to the lineup for application in a wide range of industrial environments.


Our expertise has enable us to ensure finest

Capacitive Proximity Switch

by subjecting our products to stringent quality control measures during each stage of production and while dispatch. We sincerely welcome all relevant friends all over the world to come for visit and cooperation!
