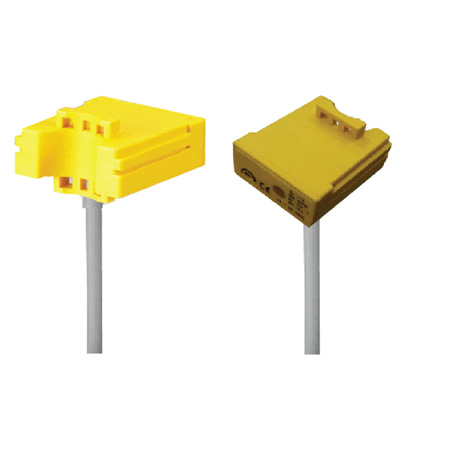

Liquid Level Sensor

Specifications:
Output method: NPN or PNP
Sensible tube: 9 ~ 13
Operating voltage: 10 ~ 30VDC
Current consumption: 30mA max.（non load）
Sensitivity adjuster: 14 turns trimmer
Output status: NO / NC changeable
Output current: 150mA max.
Protection circuit: Short circuit & polarity reversed protection
Lead wire : 4c/4.0Φ x 2m
Housing material: PC
Operating circumstance: -20℃ ~ +80℃

Feature:
1.Low price
2.Easily mountable and adjustable
3.Space saving
4.Easy to check operation
5.Reliable
6.Safety

For liquids limit level sensing on non-conductive (glass or plastic) gauge-pipes, tubes and tank walls. Miniature performance in plastic housing. Variants with cable or a connector Two-wire connection directly to the relay circuit or PLC input. LED state indication

Tube Level Switch with an integrated amplifier, thus there is no need to install a separate amplifier. Just attach it to a tube with two tying bands. The position can be easily changed with the release lever even after mounting, so that there is no need to cut the tying bands.

Tube Type Liquid Level Detection Sensor are intended for liquid (conductive and non-conductive) level detection on glass or plastic gauge-pipes, tubes and tanks. The sensitivity and modes (SO – normally open or SC – normally closed) of the switches can be easily set by placing magnetic pen on sensitive spot. The connection is done by means of two wires directly into a circuit with relay or to binary input of control system.
