Capacitive Proximity Switches

You are here: Home -> Products -> Proximity Switch -> Capacitive Proximity Switches
We are a technical Taiwan Capacitive Proximity Switches manufacturer, factory, supplier and exporter. Depending on stable investment, superior competence and good after-sale service, we have made us as one of the leading manufacturers and exporters in the industry. We promise quality products and competitive price and on-time delivery for you. We have been establishing long-term business with our customers. If you are interested in any model of our products, please be free to contact us.

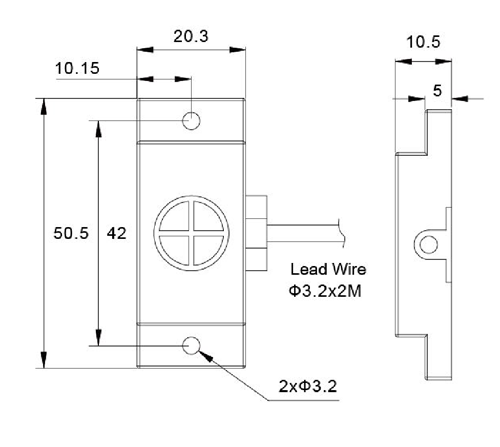

Capacitive Proximity Switches - DIM-5502
Model: DIM-5502
Capacitive Proximity Switches



Specifications:
1. Sensing distance: 10mm , Nonmetallic
2. Operating Voltage: DC12~30V
3. Response frequency: 600 Hz
4. Load current: DC 30V 200mA Max.
5. Output indicator :  LED
6. Leakage currnet: DC 1.1mA no load
7. Protection Class:  IEC IP66
8. Operation Temp.: -20 ~ 70℃
9. Housing material : ABS or PVDF
10. Connection cable length: 2M
11. Output : PNP or NPN

1. Saves Installation Space with a Thickness of Only 10 mm
2. Flat, built-in amplifier model offers excellent space efficiency, with 10-mm sensing distance.
3. Detects almost any kind of object, be it metallic or non-metallic (water, oil, glass, plastic, etc.).
4. Direct mounting onto a metallic surface is possible.
5. LED operation indicator.
6. Low-profiled Capacitive

Capacitive sensors function without physical contact with the target material. Capacitive sensors allow for the detection of both, conductive and non-conductive materials, but are most commonly used for sensing materials such as plastics, liquids, powders and granular materials. In applications utilizing capacitive technology the sensitivity of capacitive proximity switches is dependent on the material characteristics of the target object. This material characteristic of the metal, plastic or liquid object will influence the sensing range and therefore the output detection point of the capacitive sensor. To allow for this variation in material characteristics, we offer many models with adjustable sensitivity to allow for more flexibility in applying these sensors to your application. These capacitive sensor products offer an alternative technology for use in applications where the use of inductive sensors may not be possible. Detect non-metal, glass, liquid, plastic, silicone chip, powder… etc…


Our expertise has enable us to ensure finest

Capacitive Proximity Switches

by subjecting our products to stringent quality control measures during each stage of production and while dispatch. We sincerely welcome all relevant friends all over the world to come for visit and cooperation!
