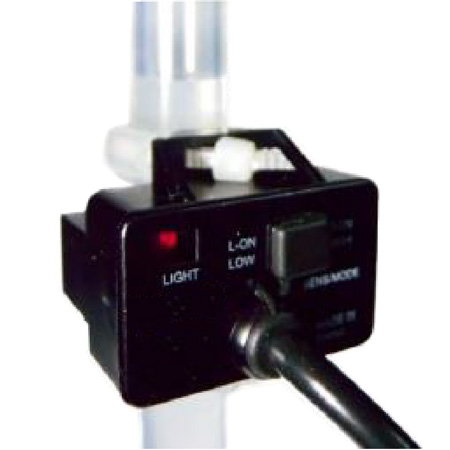

Water Level Sensor

Specifications:
1. Sensing distance: 6~13mm, Tube thickness 1mm. Tube material: PEP, PFA.
2. Operating Voltage: 12~24VDC(±10%), 5%(p-p)max. ripple
3. Response frequency: 600 Hz
4. Load current: DC 30V 200mA Max.
5. Output indicator : LED
6. Consumption current: 80mA Max.
7. Protection Class:  IP65
8. Operation Temp.: -10 ~ 55℃
9. Housing material : Polycarbonate
10. Connection cable length: 1M

Feature:
1.Ideal for detecting liquid levels
2.Suitable for any 6- to 13-mm-diameter transparent pipe
3.Suitable for a maximum wall thickness of 1 mm
4.12 to 24 VDC supply voltage
5.Easy to install tie-wrap and rubber tube
6.IP65 enclosure rating

Incorporates a sensitivity selector, built-in amplifier, and operation mode selector. Tie-wrap and rubber tube provided to prevent slippage. Suitable for any 6- to 13-mm diameter transparent or semi-transparent pipe with a wall thickness of 1 mm. Built-in amplifier with NPN output saves space and wiring effort. Compact size is ideal for the miniaturization of equipment. Uses a talc-free cable that is ideal for equipment used for the manufacturing of
semiconductors

Detect liquid, plastic, silicone chip, powder… etc… The detected distance varied along closely with the property of factors such as electric ion (electric conductive coefficient or non electric conductive coefficient), moisture content, the volume of the object. These will affect the detection distance accordingly.
