Magnetic Float Switches

You are here: Home -> Products -> Magnetic Level Switch -> Magnetic Float Switches

We are a technical Taiwan Magnetic Float Switches manufacturer, factory, supplier and exporter. Depending on stable investment, superior competence and good after-sale service, we have made us as one of the leading manufacturers and exporters in the industry. We promise quality products and competitive price and on-time delivery for you. We have been establishing long-term business with our customers. If you are interested in any model of our products, please be free to contact us.

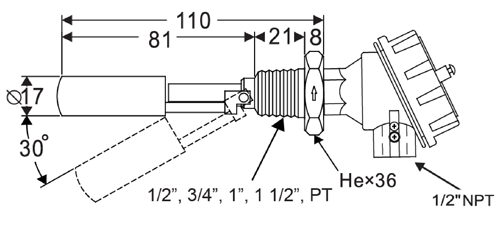

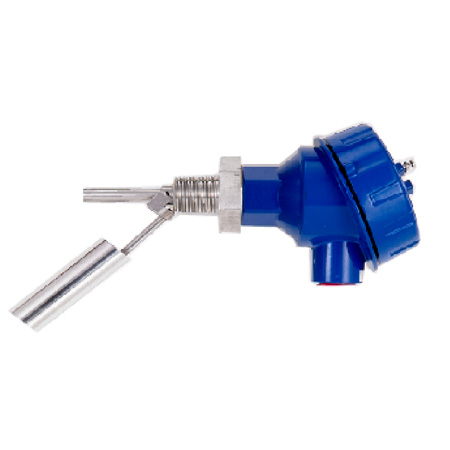

Model: MS-10
Magnetic Float Switches

Specifications:
1. Switching Power:70W
2. Switching Vlots: 240VAC/200VDC
3. Switching Current:0.7Amp
4. Max. Pressure:10 kg/cm²
5. Float S.G: 0.7 g/cm³
6. Temperature Range: -20~120°C
7. Material: SUS304
8. Connection Thread: 1/2” PT/ 1/2"PF (customized)
9. Combination level and temperature sensors

Features
1.Single-point
2.Magnetic float switch technology
3.High reliability
4.Wide selection of available materials
5.Direct interface to controllers available

Side mount float switches are available in stainless steel, polypropylene, as well as the highly customizable 90 degree model. Side mount float switches work well for small tanks. The polypropylene and stainless options make our side mounts compatible with nearly any solution. If you need something we do not have on our site contact us as we can make any type of side mount float switch you’re looking for.
