Side Mounted Level Switch

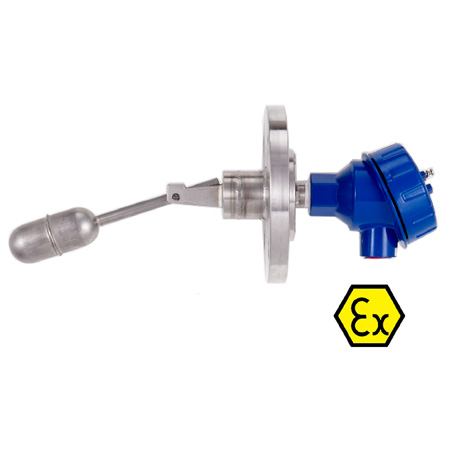

Side Mounted Level Switch - DW-01 Explosion-Proof
Model: DW-01 Explosion-Proof
Side Mounted Level Switch



Specifications:
1. Switching Volts: 250 VAC
2. Switching Current: 3A
3. Max. Pressure:30 kg/cm²
4. Float S.G: 0.7 g/cm³
5. Temperature Range: -20~150°C

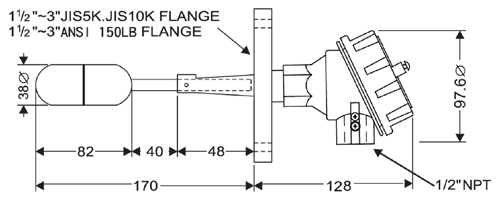

6. Float Size: ø38 x 82
7. Body Material: SUS304 / SUS316
8. Connection Flange: 1.5"~3" JIS 5K,10K / 1.5"~3" ANSI150LB

Side mounted float level switch is applicable for process industry which need control liquid level for variety of exposure or pressure container. The switch will action and alarm, to control pumps and valves open or close when the liquid level rise to high limit or fall to low limit.
High-temperature liquids, heat medium boiler, cooling water tank.  Only need one float to control ON, OFF. It can be used for material of SUS304/316 is suitable for high temperature and high pressure tanks.

Liquid-wetted party material can be selected for SUS304 or SUS316 as well as enclosure explosion proof model.
