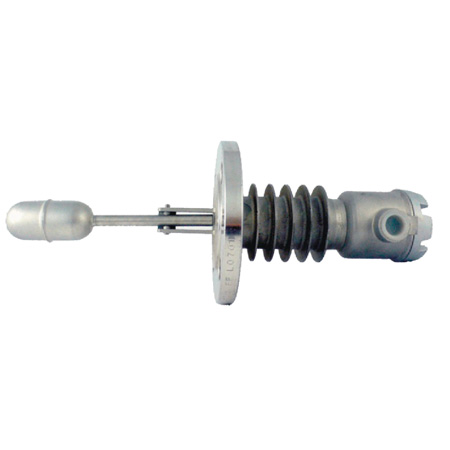

Magnetic Reed Switch

Specifications:
1. Switching Volts: 250 VAC
2. Switching Current: 3A
3. Max. Pressure:30 kg/cm²
4. Float S.G: 0.7 g/cm³
5. Temperature Range: -20~300°C
6. Float Size: ø38 x 82
7. Body Material: SUS304 / SUS316
8. Connection Flange: 1.5"~3" JIS 5K,10K / 1.5"~3" ANSI150LB

The level switch is intended for side-mounting applications, and can be installed in a tee as an external float chamber.  It is most often used with vapor-liquid separators as a pump-on or pump-off, or high-level alarm switch.  The switch enclosure is rated for hazardous locations, so can be used without an intrinsically-safe barrier in the control panel. Its proven technology has met the requirements of several areas in the industry due to its wide range of applications in regard to pressure, temperature, media density and resistance.

Feature:
1.Magnetic Reed Switch Technology
2.High Reliability / Repeatability Standards
3.Direct Interface to Controllers
4.High Temperature
5.High Pressure Rating
6.Suitable for Corrosive Conditions
7.Easy to install
8.Very high flexibility
9. Fast delivery

Application :
1. High Low level signals for alarm Action.
2. Safety interlock circuits Automatic Pump Control
3. PLC Control.
4. Prevention of tank overflows.
5. Pump safeguard against dry running.
