Magnetrol Level Switches

Specifications:
1. Switching Power:70W
2. Switching Vlots: 240VAC/200VDC
3. Switching Current:0.7Amp
4. Max. Pressure:10 kg/cm²
5. Float S.G: 0.7 g/cm³
6. Temperature Range: -20~120°C
7. Material: SUS304
8. Connection Thread: 1/2” PT/ 1/2"PF (customized)
9. Combination level and temperature sensors

Feature:
1.Ideal for tanks with inaccessible tops or bottoms
2.Easy to install and maintain
3.Low cost, large Volume OEM models available
4.Convenient Side Mounting in Small Tanks
5.Very compact size
6.Selectable normally open or normally closed

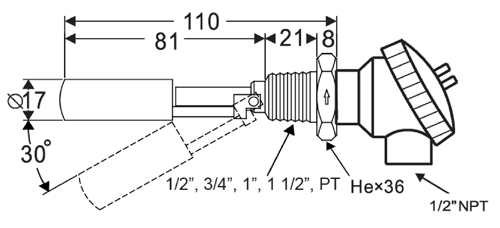

Compact, rugged and virtually maintenance free, the Mini Side Mounting Float Switch can effectively meet the needs of large volume OEM users. The sensor is designed for side mounting into tanks that have restricted space or inaccessible tops or bottoms. Construction is all SUS304 for compatibility with a wide range of chemicals and is suitable for food processing requirements. Magnetic SPST switch operation is normally open (dry) when units are installed with float downward, or normally closed (dry) when installed with float upward. The liquid level switch requires side mounting into vessels, and is designed to provide maximum reliability. The unit should be installed in environments that are free from excessive contamination and high shock.
