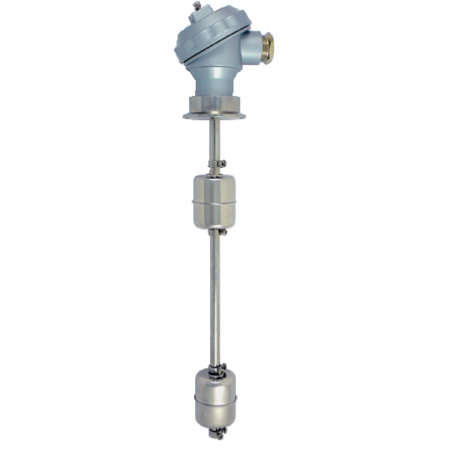

Magnetrol Level Switch

Specifications:
1. Switching Volts: 250 VAC
2. Switching Current: 0.7~2A
3. Contact : NO / NC
4. Max. Pressure:30 kg/cm² SUS / 5 kg/cm² PVC, PVDF, PP
5. Max. Length : 5 M
6. Temperature Range: 120°C SUS, PVDF / 80 °C PP, PVC
7.. Body Material: SUS304 / SUS316
8. Connection : Flange / Thread

Float level switch (float switch) consists of a magnetic float unit stem with magnetic reed switch. The magnetic float moves with liquid level to actuate a hermetically sealed magnetic switch within the unit stem. Single point level switches in most material are usually used for high or low alarm vessels. Multi-point level switches can be designed according to customers' requirements. The general-purpose high temp float level switch is an ideal choice for relatively clean water, diluted chemical or petroleum.

Features:
1. Good look and a smart design
2. Flange or Thread connection optional
3. High temperature
4. The switches are tested before shipping
5. Switch mode N. C. Or N. O. Is selectable
6. Variety of float ball dimensions is selectable for broad media compatibility
7. By inverting the float 180 degrees, the switch contact can be changed from N. C. to N. O.
8. The temperature and level switch combination product, mounting threads can be selectable, if custom request.
9. 4~20mA output is optional.
