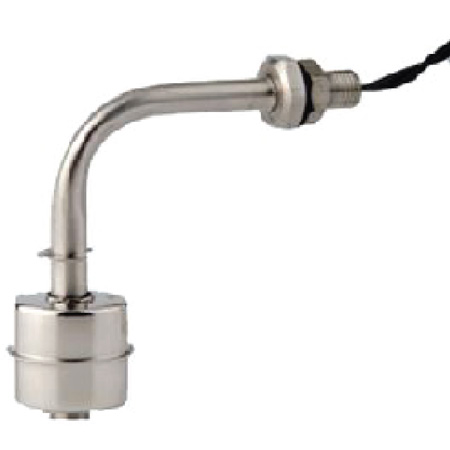

Float Type Level Switch

Specifications:
1. Switching Power:70W
2. Switching Vlots: 240VAC/200VDC
3. Switching Current:0.7Amp
4. Max. Pressure:10 kg/cm²
5. Float S.G: 0.75 g/cm³
6. Temperature Range: -20~120°C

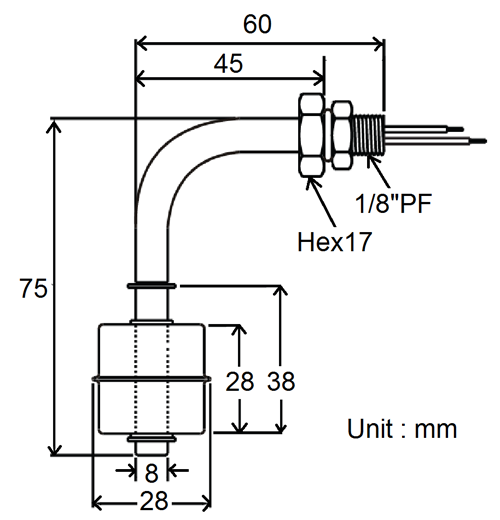

7. Float Size: ø28 x 28 x ø8 mm
8. Material: SUS304 or SUS316L
9. Connection Thread: 1/8” PF (customized)
10. Vertical mounted

Magnetic float level switches principle: the float which link to rod equipped witch a constant magnetic field, because of the liquid level rise or fall, make the float internal generated magnetic field, thus triggered the reed switch which inner rod action. Widely application to liquid level measurement, liquid level alarm and level security control field.

Feature:
1.No standby power requirement, N.O, N.O. and S.P.D.T optional
2Customer can defined measurement range and connection mode
3.Shell material: stainless steel
4.High cost performance, high stability, long service life

Application:
Mini float level switch is widely used in level control and alarm of all kinds of industry such as electronic electric power, chemical, water treatment, water supply and drainage. The float switches are not affected by electrical interference. They can withstand to chemicals, high temperature and pressure if the correct material of mini float level switch is selected by the customers. OEM/ODE and special specification are acceptable.
