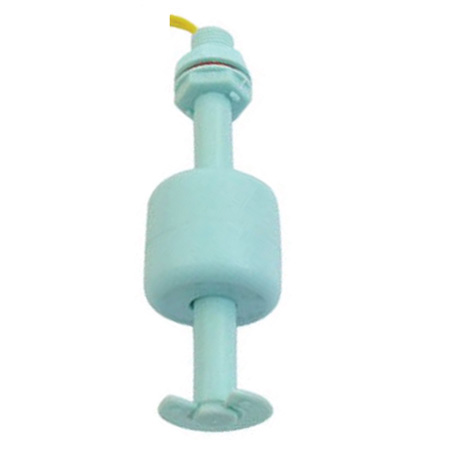

Mini Float Level Switches

Specifications:
1. Switching Power: 50W
2. Switching Vlots: 220VAC/24VDC
3. Switching Current:0.5Amp
4. Max. Pressure: ATM kg/cm²
5. Float S.G: 0.6 g/cm³
6. Temperature Range: -10~85°C
7. Float Size: ø26 x 17 mm
8. Material: PP
9. Connection Thread: M10
10. Vertical mounted

Our reputed industry is offering a high quality of Float Level Switch to our valuable costumers at market suitable rates. And made from an excellent quality of materials.

A float switch is a device used to sense the level of liquid within a tank. The switch may actuate a pump, an indicator, an alarm, or other device.

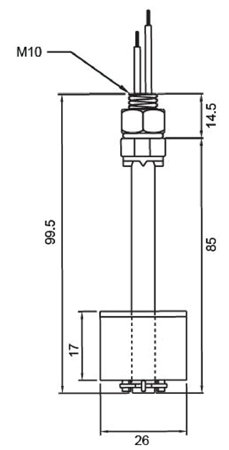

The Water Level Sensor is made of plastic material, two single tiny cables. A float switch is a device used to sense the level of liquid within a tank. Use them with hydroponics, saltwater tank, freshwater tank, gardening, aquariums for power head control, pet bowls, fish tanks, filtration, heating, or whatever your project may be. It can be easily converted from normally open to normally close by inverting the float. Note: because the current that the switch can carry is much little (0.5A), you must use a relay or contactor when it is connected by a load, relay and contactor are not included here. Screw Thread: M10. Float Diameter: 26mm. Body Total Length: 100 mm. Cable Length: 300mm.
