Bimetal Thermometer

Specifications:

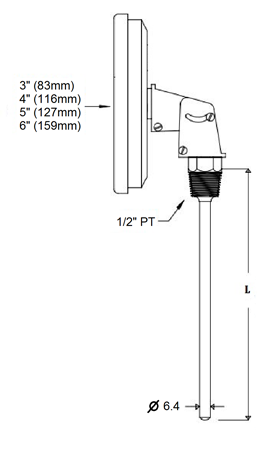

1. Case Diameter: 2", 3", 4", 5", 6"
2. Case Material: SUS304 / SUS316
3. Accuracy: +/- 1%
4. Stem Diameter: 6.4mm Standard (4 / 8 / 9.5mm Optional)
5. Stem Length: 2"~50" (Optional)
6. Transparent Plate: Resin or safety glass
7. Temperature Range: -50~600℃
8. Contact Type: SPST for 3" ~6"
9. Connection Size: 1/4", 3/8", 1/2"
10. Connection Type: PT, NPT

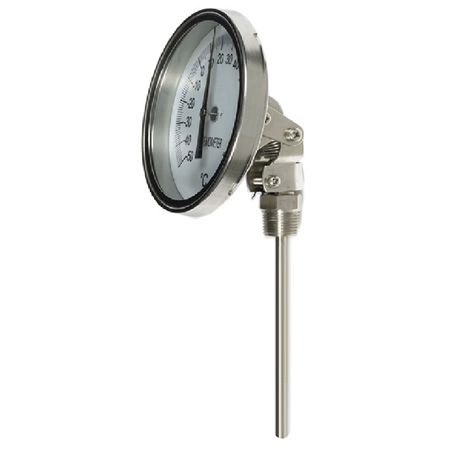

A bimetal thermometer uses an element made of two different metals to move a pointer as the temperature changes. Typically, the element is a strip made of copper or steel and brass. The Adjustable Angle Bimetal Thermometer can be configured to the most desirable viewing angle. This instrument has a hermetically sealed, stainless steel case designed to withstand the rigors of industrial environments, while producing an accurate, responsive measurement.

For applications where the process media may be corrosive or contained under pressure, the use of a thermo well is required to prevent damage to the thermometer and facilitate its removal from the process.

Features:
1. All-welded corrosion-resistant 304 stainless steel construction
2.Back connection without external reset
3.Industrial design
4.Reliability and economy
