We are a technical Taiwan Bimetallic thermometer manufacturer, factory, supplier and exporter. Depending on stable investment, superior competence and good after-sale service, we have made us as one of the leading manufacturers and exporters in the industry. We promise quality products and competitive price and on-time delivery for you. We have been establishing long-term business with our customers. If you are interested in any model of our products, please be free to contact us.

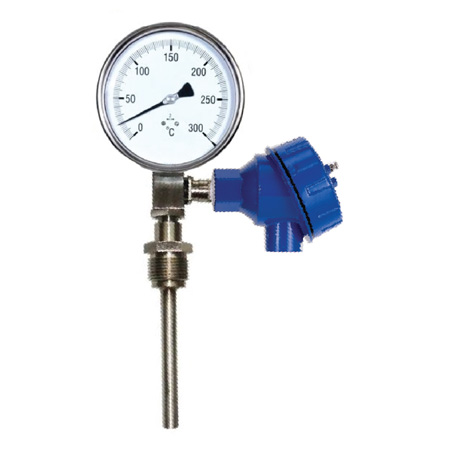

Bimetallic thermometer
Specifications:
1. Case Diameter: 2", 3", 4", 5", 6"
2. Case Material: SUS304 / SUS316
3. Accuracy: +/- 1%
4. Stem Diameter: 6.4mm Standard (4 / 8 / 9.5mm Optional)
5. Stem Length: 2"~50" (Optional)
6. Transparent Plate: Resin or safety glass
7. Temperature Range: -50~600℃
8. Contact Type: SPST for 3" ~6"
9. Connection Size: 1/4", 3/8", 1/2"
10. Connection Type: PT, NPT
11. Output: 2 Wire 4~20mA
Integrated Bimetal Thermometer is a convenient, multipurpose indicator for local and remote temperature monitoring. This rugged dual-sensor system puts two sensors in one thermowell, and allows easy tie-in to process control. Both sensors are easily calibrated. Special sensor encapsulation and optional liquid fill make the Integrated Bimetal Thermometer most rugged, durable instrument of its kind.
Versatile temperature instrument measuring both a direct (mechanical) reading and a remote (electronic) indication from the same unit. Fully adjustable connection to fit your specific application.
Feature:
1. Easily installed in any standard thermowell
2. Allows local and remote readings
3. Bimetal dependability with RTD (or thermocouple) accuracy
4. Interchangeable with existing thermometer, RTD, or Thermocouple
5. 4-20mA transmitter output
6. Several output connections available
7. Thermocouple or RTD sensor
8. Remote and Local Indication
9. Data Acquisition for Process Control
10. Redundant sensors for simple, effective calibration or spot checking without removing instrument from thermowell.
1. Case Diameter: 2", 3", 4", 5", 6"
2. Case Material: SUS304 / SUS316
3. Accuracy: +/- 1%
4. Stem Diameter: 6.4mm Standard (4 / 8 / 9.5mm Optional)
5. Stem Length: 2"~50" (Optional)
6. Transparent Plate: Resin or safety glass
7. Temperature Range: -50~600℃
8. Contact Type: SPST for 3" ~6"
9. Connection Size: 1/4", 3/8", 1/2"
10. Connection Type: PT, NPT
11. Output: 2 Wire 4~20mA
Integrated Bimetal Thermometer is a convenient, multipurpose indicator for local and remote temperature monitoring. This rugged dual-sensor system puts two sensors in one thermowell, and allows easy tie-in to process control. Both sensors are easily calibrated. Special sensor encapsulation and optional liquid fill make the Integrated Bimetal Thermometer most rugged, durable instrument of its kind.
Versatile temperature instrument measuring both a direct (mechanical) reading and a remote (electronic) indication from the same unit. Fully adjustable connection to fit your specific application.
Feature:
1. Easily installed in any standard thermowell
2. Allows local and remote readings
3. Bimetal dependability with RTD (or thermocouple) accuracy
4. Interchangeable with existing thermometer, RTD, or Thermocouple
5. 4-20mA transmitter output
6. Several output connections available
7. Thermocouple or RTD sensor
8. Remote and Local Indication
9. Data Acquisition for Process Control
10. Redundant sensors for simple, effective calibration or spot checking without removing instrument from thermowell.
