Temperature Transmitters

Specifications:
1. Input: (T/C) : industry standard thermocouple types, J, K, T, E, B,
R, S, N, C (ITS-90). Pt100: Excitation 180uA. 2 or 3 wire connection.
2. Operating condition of 24°C±3°C.
3. Input sampling rate: 200mS.
4. Output signal: Analogue 4 to 20mA
5. Output resolution: 0.6uA.
6. Output response time: <200mS.
7. Load: Max. (V Power supply - 10 V) / 0.020
8. Power supply: 12 to 35 V, internal protection against polarity inversion.
9. Common mode rejection ratio: >80dB.
10. Galvanic isolation : 3.75 KVrms. between input and output
11. Input current required: ≧3.8mA
12. Current limit: ≦23mA
13. Operating temperature : 0 to 55°C , Humidity : 0 to 90% RH

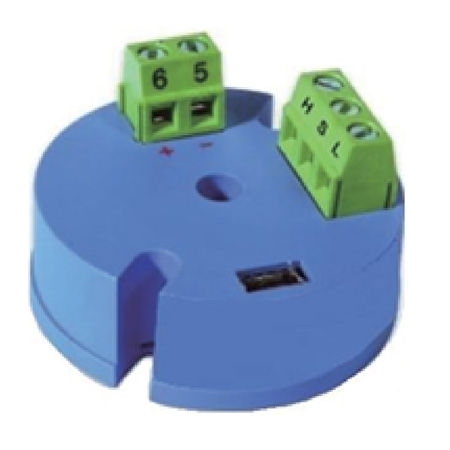

DW-TS transmitter is a 2-wire in-head temperature transmitter, microprocessor based designed for the flexibility of accepting mV, Pt100 and a variety of thermocouples as the input sensor. The delivers a scalable linear 4-20mA output signal proportional to the sensor temperature. User-friendly configuration software is provided for parameter set up, including sensor type, temperature range, filter, etc.

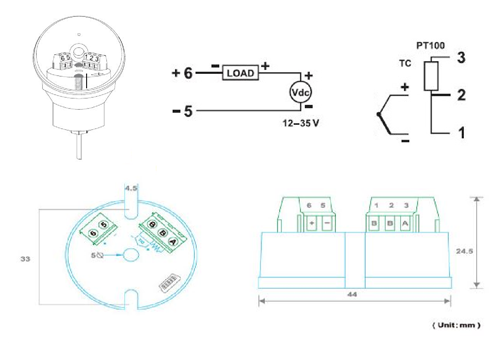

The Transmitter is mounted on the head of the temperature sensor and accepts either a three-wire RTD Pt-100 sensor or a Thermocouple sensor and converts it into a linear current loop signal of 4 to 20mA DC, capable of driving a load of up to 600 Ohms. The instrument operates in two-wire configuration.
