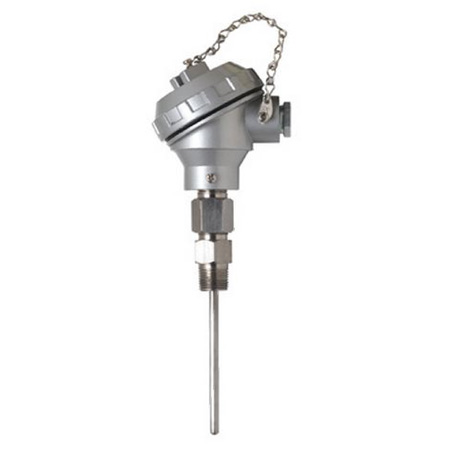

RTD Temperature Sensors

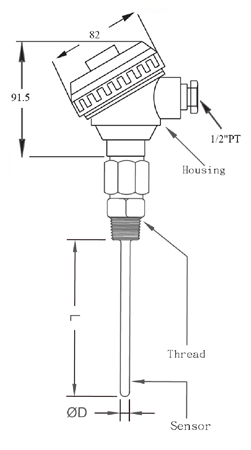

Specifications:
1. Housing: Aluminum Alloy
2. Element: PT100 / PT500 / PT1000 / TC
3. Tube Dia: 12.7mm / 9.5mm
4. Thread Size: 1/2", 3/4" ,1" PT
5. Probe Material: 304/316/Teflon

We are an industry leader in the design and fabrication of temperature sensor assemblies for a variety of industries. We are committed to providing the finest quality temperature sensors at affordable prices with an easy ordering system to speed delivery.
With extensive applications as process monitoring in semiconductor industry, steel industry, chemical industry, environmental engineering, food processing, pharmaceutical industry, water plants, power plants, research and development, etc.

Reliable industrial process temperature measurement
Feature:
1.100 ohm platinum RTD 3-wire element
2.Class A accuracy
4.1/4" diameter, 316 SS sealed sheath to protect against harsh environments
5.3-wire RTD element encased in alumina powder insulation provides excellent vibration 6.Dampening and heat transfer
7.6" probe, 12" probe lengths
