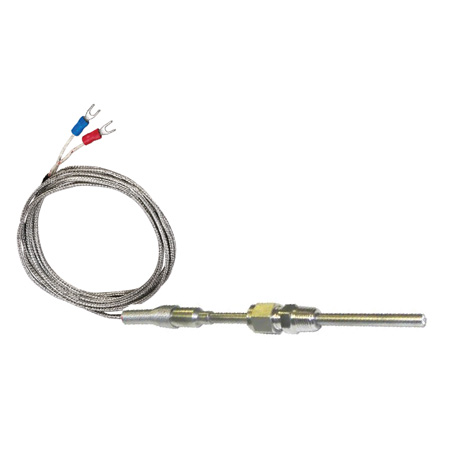

Thermocouple Sensor

Specifications:
1. K Type
1. Probe Size O.D.: 1.6 / 3.2 / 4.8 mm
2. Measuring range: -100 ~ +1300°C
3. Length: Customized
4. Connection Method: 2wire
5. Lead Wire: Stainless steel protected wires
6. Protection Material: 316L

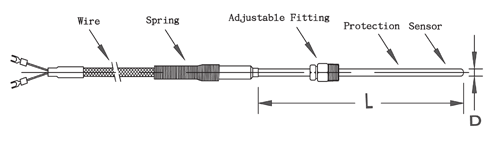

7. Fitting Thread:1/2” PT or 1/4"PT , adjustable

Exposed Tip Sensing Junction (Fast Response)
Response time constant: 250ms
Includes 316 SS adjustable compression fitting
Recommended for fuel types: Gasoline, Natural gas, Nitrous Oxide, & Alcohols
Monitoring for long distance temperature signal transmission. For process in agriculture, green house, water power and electricity. For industries in heating, air conditioning, refrigeration. Machinery manufacturing, storage tank, compressor, hydraulic equipment
A thermocouple is made of two dissimilar metals joined together. This joint creates a positive temperature coefficient with a mv output signal that is interpreted by a temperature control, or a high limit device. Our thermocouples follow the standard ISA calibration with types “J” and “K” calibrations being the most common ratings for Industrial Process Heating. For other calibrations, please check the factory.
The two thermocouple constructions are mineral insulates (MI) and tube and wire, each having features suited to specific process applications. These are commonly used in the plastics industry and can utilize compression fittings or bayonet adaptors for mounting ease. Many optional mounting arrangements are available to suit your design needs; these include bayonet mount, adjustable depth, nozzle melt, and ring or shim mounting.
