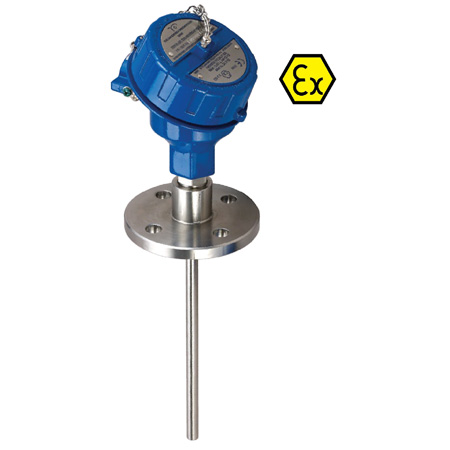

RTD Temperature sensor

Specifications:
1. Housing: ATEX explosion.
2. Element: PT100 / PT500 / PT1000 / TC
3. Tube Dia: 12.7mm / 9.5mm
4. Flange Size: 1/2", 3/4" ,1" JIS10K  1/2", 3/4" ,1" ANSI150
5. Probe Material: 304/316/Teflon

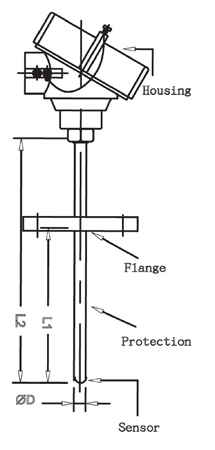

These sensors are mainly used in environments where the temperature reading out is separated from the measure taking area (ovens, pipes...). The active part of the sensor is made of a sensing element protected by a metallic sheath. Connection is made by a terminal block or a transmitter situated inside a connecting head. A sliding or welded fitting allows a tight fixing.

Feature:
1. Platinum RTD&PT100 Temperature Sensor
2. Adjustable RTD
3. High accuracy
4. Temperature measuring products manufacturer
5. Flange connection
6. Temperature range: -200-500C
7. Diameter: 3/5/8/12m
8. Movable thread
9. Length : 200/500/1000mm
10. Explosion Head

Applications:
1.Plastic injection molding machinery
2.Food processing equipment
3.Engine and turbine exhaust gas
4.Semiconductor processing
5.Heat treating and metals processing
6.Medical equipment
7.Aerospace industries
8.Packaging equipment
9.Test stands
